DescriptionP0ACK8
DateThu Jan 5 11:18:22 GMT 2012
Unique Job IDa502c31b9b8a2a8c

Summary

Top model

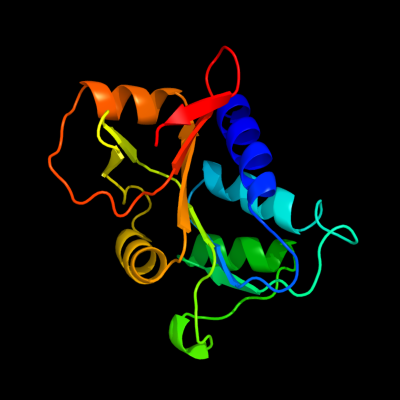

Image coloured by rainbow N → C terminus
Model (left) based on template d1m0sa1
Top template information
Fold:NagB/RpiA/CoA transferase-like
Superfamily:NagB/RpiA/CoA transferase-like
Family:D-ribose-5-phosphate isomerase (RpiA), catalytic domain
Confidence and coverage
Confidence:100.0% Coverage: 56%
136 residues ( 56% of your sequence) have been modelled with 100.0% confidence by the single highest scoring template.
Additional confident templates have been detected (see Domain analysis) which cover other regions of your sequence.
237 residues ( 98%) could be modelled at >90% confidence using multiple-templates.
You may wish to try resubmitting your sequence in "intensive" mode to model more of your sequence.
3D viewing
Interactive 3D view in Jmol

Sequence analysis

Secondary structure and disorder prediction

   1........10.........20.........30.........40.........50.........60
Sequence  MKAARQQAIVDLLLNHTSLTTEALSEQLKVSKETIRRDLNELQTQGKILRNHGRAKYIHR
Secondary structure
SS confidence
Disorder  ??
?
???
Disorder confidence

   .........70.........80.........90.........100.........110.........120
Sequence  QNQDSGDPFHIRLKSHYAHKADIAREALAWIEEGMVIALDASSTCWYLARQLPDINIQVF
Secondary structure
SS confidence
Disorder  ??????
?
?
Disorder confidence

   .........130.........140.........150.........160.........170.........180
Sequence  TNSHPICHELGKRERIQLISSGGTLERKYGCYVNPSLISQLKSLEIDLFIFSCEGIDSSG
Secondary structure
SS confidence
Disorder
Disorder confidence

   .........190.........200.........210.........220.........230.........240
Sequence  ALWDSNAINADYKSMLLKRAAQSLLLIDKSKFNRSGEARIGHLDEVTHIISDERQVATSL
Secondary structure
SS confidence
Disorder
Disorder confidence

   ...
Sequence  VTA
Secondary structure
SS confidence
Disorder  ???
Disorder confidence


Confidence Key
High(9)                    Low (0)
?Disordered
Alpha helix
Beta strand

Domain analysis

Hover over an aligned region to see model and summary info

Please note, only up to the top 20 hits are modelled to reduce computer load

RankAligned region

PDB 1m0s chain A domain 1

3D model

Region: 76 - 235
Aligned: 136
Modelled: 140
Confidence: 100.0%
Identity: 15%
Fold: NagB/RpiA/CoA transferase-like
Superfamily: NagB/RpiA/CoA transferase-like
Family: D-ribose-5-phosphate isomerase (RpiA), catalytic domain

Phyre2

PDB 1lk5 chain A domain 1

3D model

Region: 76 - 241
Aligned: 145
Modelled: 152
Confidence: 100.0%
Identity: 22%
Fold: NagB/RpiA/CoA transferase-like
Superfamily: NagB/RpiA/CoA transferase-like
Family: D-ribose-5-phosphate isomerase (RpiA), catalytic domain

Phyre2

PDB 1uj4 chain A domain 1

3D model

Region: 76 - 218
Aligned: 128
Modelled: 128
Confidence: 99.9%
Identity: 17%
Fold: NagB/RpiA/CoA transferase-like
Superfamily: NagB/RpiA/CoA transferase-like
Family: D-ribose-5-phosphate isomerase (RpiA), catalytic domain

Phyre2

PDB 3hhe chain A

3D model

Region: 78 - 215
Aligned: 118
Modelled: 118
Confidence: 99.9%
Identity: 17%
PDB header:isomerase
Chain: A: PDB Molecule:ribose-5-phosphate isomerase a;
PDBTitle: crystal structure of ribose-5-phosphate isomerase a from bartonella2 henselae

Phyre2

PDB 2f8m chain B

3D model

Region: 78 - 223
Aligned: 126
Modelled: 126
Confidence: 99.9%
Identity: 20%
PDB header:isomerase
Chain: B: PDB Molecule:ribose 5-phosphate isomerase;
PDBTitle: ribose 5-phosphate isomerase from plasmodium falciparum

Phyre2

PDB 1lk5 chain C

3D model

Region: 78 - 215
Aligned: 118
Modelled: 118
Confidence: 99.9%
Identity: 23%
PDB header:isomerase
Chain: C: PDB Molecule:d-ribose-5-phosphate isomerase;
PDBTitle: structure of the d-ribose-5-phosphate isomerase from2 pyrococcus horikoshii

Phyre2

PDB 1m0s chain A

3D model

Region: 76 - 212
Aligned: 117
Modelled: 117
Confidence: 99.9%
Identity: 15%
PDB header:isomerase
Chain: A: PDB Molecule:ribose-5-phosphate isomerase a;
PDBTitle: northeast structural genomics consortium (nesg id ir21)

Phyre2

PDB 3kwm chain C

3D model

Region: 76 - 212
Aligned: 117
Modelled: 117
Confidence: 99.9%
Identity: 20%
PDB header:isomerase
Chain: C: PDB Molecule:ribose-5-phosphate isomerase a;
PDBTitle: crystal structure of ribose-5-isomerase a

Phyre2

PDB 3l7o chain B

3D model

Region: 78 - 212
Aligned: 115
Modelled: 115
Confidence: 99.9%
Identity: 16%
PDB header:isomerase
Chain: B: PDB Molecule:ribose-5-phosphate isomerase a;
PDBTitle: crystal structure of ribose-5-phosphate isomerase a from streptococcus2 mutans ua159

Phyre2

PDB 1lkz chain B

3D model

Region: 75 - 215
Aligned: 121
Modelled: 121
Confidence: 99.8%
Identity: 13%
PDB header:isomerase
Chain: B: PDB Molecule:ribose 5-phosphate isomerase a;
PDBTitle: crystal structure of d-ribose-5-phosphate isomerase (rpia)2 from escherichia coli.

Phyre2

PDB 2pjm chain A

3D model

Region: 75 - 215
Aligned: 126
Modelled: 126
Confidence: 99.8%
Identity: 19%
PDB header:isomerase
Chain: A: PDB Molecule:ribose-5-phosphate isomerase a;
PDBTitle: structure of ribose 5-phosphate isomerase a from2 methanocaldococcus jannaschii

Phyre2

PDB 1uj6 chain A

3D model

Region: 78 - 212
Aligned: 121
Modelled: 121
Confidence: 99.8%
Identity: 19%
PDB header:isomerase
Chain: A: PDB Molecule:ribose 5-phosphate isomerase;
PDBTitle: crystal structure of thermus thermophilus ribose-5-phosphate isomerase2 complexed with arabinose-5-phosphate

Phyre2

PDB 1j5y chain A domain 1

3D model

Region: 1 - 59
Aligned: 59
Modelled: 59
Confidence: 99.2%
Identity: 24%
Fold: DNA/RNA-binding 3-helical bundle
Superfamily: "Winged helix" DNA-binding domain
Family: Biotin repressor-like

Phyre2

PDB 3u7j chain A

3D model

Region: 78 - 212
Aligned: 115
Modelled: 115
Confidence: 99.2%
Identity: 17%
PDB header:isomerase
Chain: A: PDB Molecule:ribose-5-phosphate isomerase a;
PDBTitle: crystal structure of ribose-5-phosphate isomerase a from burkholderia2 thailandensis

Phyre2

PDB 1stz chain A domain 1

3D model

Region: 4 - 60
Aligned: 57
Modelled: 57
Confidence: 99.2%
Identity: 26%
Fold: DNA/RNA-binding 3-helical bundle
Superfamily: "Winged helix" DNA-binding domain
Family: Heat-inducible transcription repressor HrcA, N-terminal domain

Phyre2

PDB 1j5y chain A

3D model

Region: 1 - 62
Aligned: 62
Modelled: 62
Confidence: 99.1%
Identity: 23%
PDB header:transcription
Chain: A: PDB Molecule:transcriptional regulator, biotin repressor family;
PDBTitle: crystal structure of transcriptional regulator (tm1602) from2 thermotoga maritima at 2.3 a resolution

Phyre2

PDB 1bia chain A domain 1

3D model

Region: 1 - 61
Aligned: 61
Modelled: 61
Confidence: 99.0%
Identity: 23%
Fold: DNA/RNA-binding 3-helical bundle
Superfamily: "Winged helix" DNA-binding domain
Family: Biotin repressor-like

Phyre2

PDB 1xtz chain A

3D model

Region: 78 - 212
Aligned: 115
Modelled: 116
Confidence: 99.0%
Identity: 17%
PDB header:isomerase
Chain: A: PDB Molecule:ribose-5-phosphate isomerase;
PDBTitle: crystal structure of the s. cerevisiae d-ribose-5-phosphate isomerase:2 comparison with the archeal and bacterial enzymes

Phyre2

PDB 1o8b chain B domain 1

3D model

Region: 78 - 212
Aligned: 110
Modelled: 116
Confidence: 98.6%
Identity: 13%
Fold: NagB/RpiA/CoA transferase-like
Superfamily: NagB/RpiA/CoA transferase-like
Family: D-ribose-5-phosphate isomerase (RpiA), catalytic domain

Phyre2

PDB 1vb5 chain A

3D model

Region: 70 - 235
Aligned: 151
Modelled: 166
Confidence: 98.2%
Identity: 19%
Fold: NagB/RpiA/CoA transferase-like
Superfamily: NagB/RpiA/CoA transferase-like
Family: IF2B-like

Phyre2

PDB 3f8m chain A

3D model

Region: 6 - 76
Aligned: 71
Modelled: 71
Confidence: 98.0%
Identity: 17%
PDB header:transcription
Chain: A: PDB Molecule:gntr-family protein transcriptional regulator;
PDBTitle: crystal structure of phnf from mycobacterium smegmatis

Phyre2
